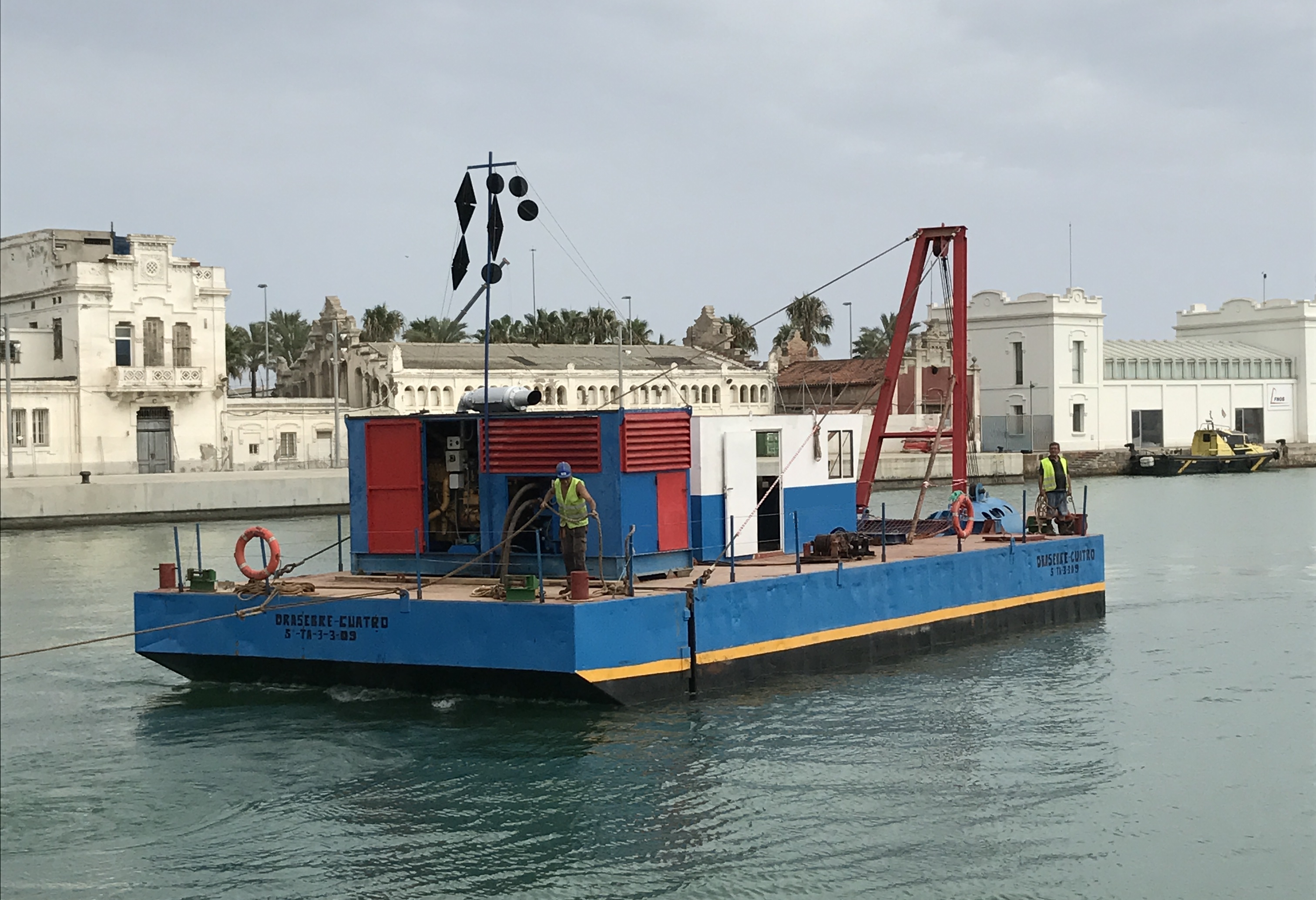

| CUT AND SUCTION DREDGER: DRESEBRE CUATRO | ||
 Click in the image |
Registration number: | 5ªTA-3-3-09 |
| NIB | 366739 | |
| Length: | 16,50 m | |
| Beam: | 7,50 m | |
| Depth: | 2,00 m | |
| Draught: | 1,00 m | |
| Tonnage GT / NT: | 46 | |
| Suction equipment:
Hidraulic pump DOP3025 |
Max. Capacidad mezclada 800-1400 M3/HR Speed aprox: 700 rpm. Max power. 250Kw. Suction pipe diameter: 300mm. Impulsion pipe diameter 300mm. |
|
| Cutter equipment: | maximum power: 38Kw. maximum flow 105 L/min. |
|
