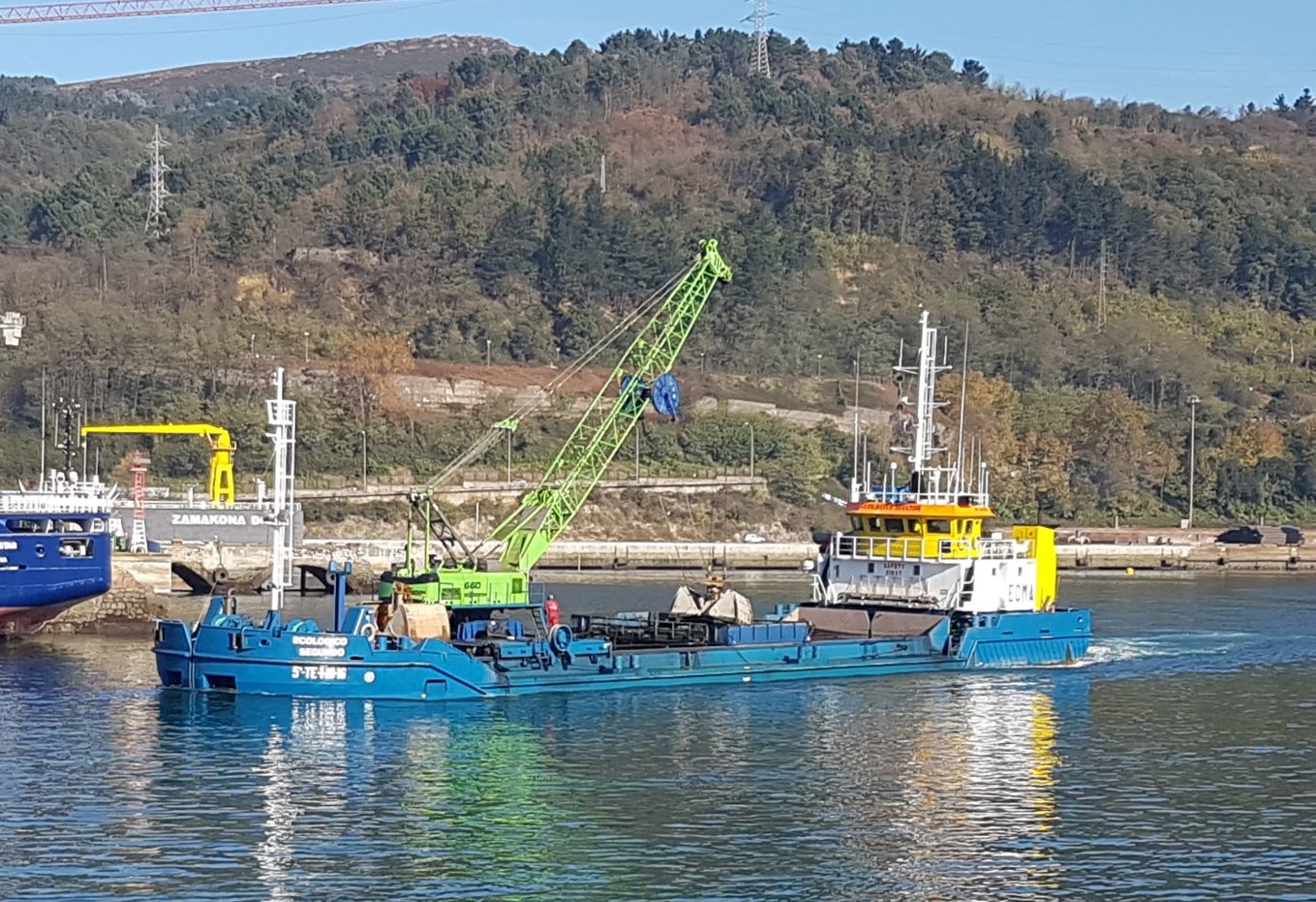

| SPLIT HOPPER DREDGER: ECOLÓGICO SEGUNDO | ||
 Click in the image |
Registration number: | 5th – TE – 1 – 18 – 16 |
| IMO number: | 9417907 | |
| Length: | 55,00 m | |
| Beam: | 12,00 m | |
| Depth: | 4,50 m | |
| Draught: | 4.00 m | |
| Tonnage GT / NT: | 485 / 254 | |
| Pitcher capacity: | 1000 m3 | |
| Main propulsión: | Caterpillar 3412CTA 537 Kw x 2 diesel engine | |
| Speed: | 9 nudos | |
| Dredging equipment: | Sennenbogen 660 crane withcon Hydraulic grabs of 3,2 / 5 and 6 m3, With a work depth capability of 36 meters | |
| Positioning equipment: | Hopper (double GPS antenna with decimeter precision and WiFi) Crane (GNSS model GPS with centimeter precision and USDigital Robotic encoder height control system). Pitcher opening (pitcher opening sensor with coordinate registration) |
|
