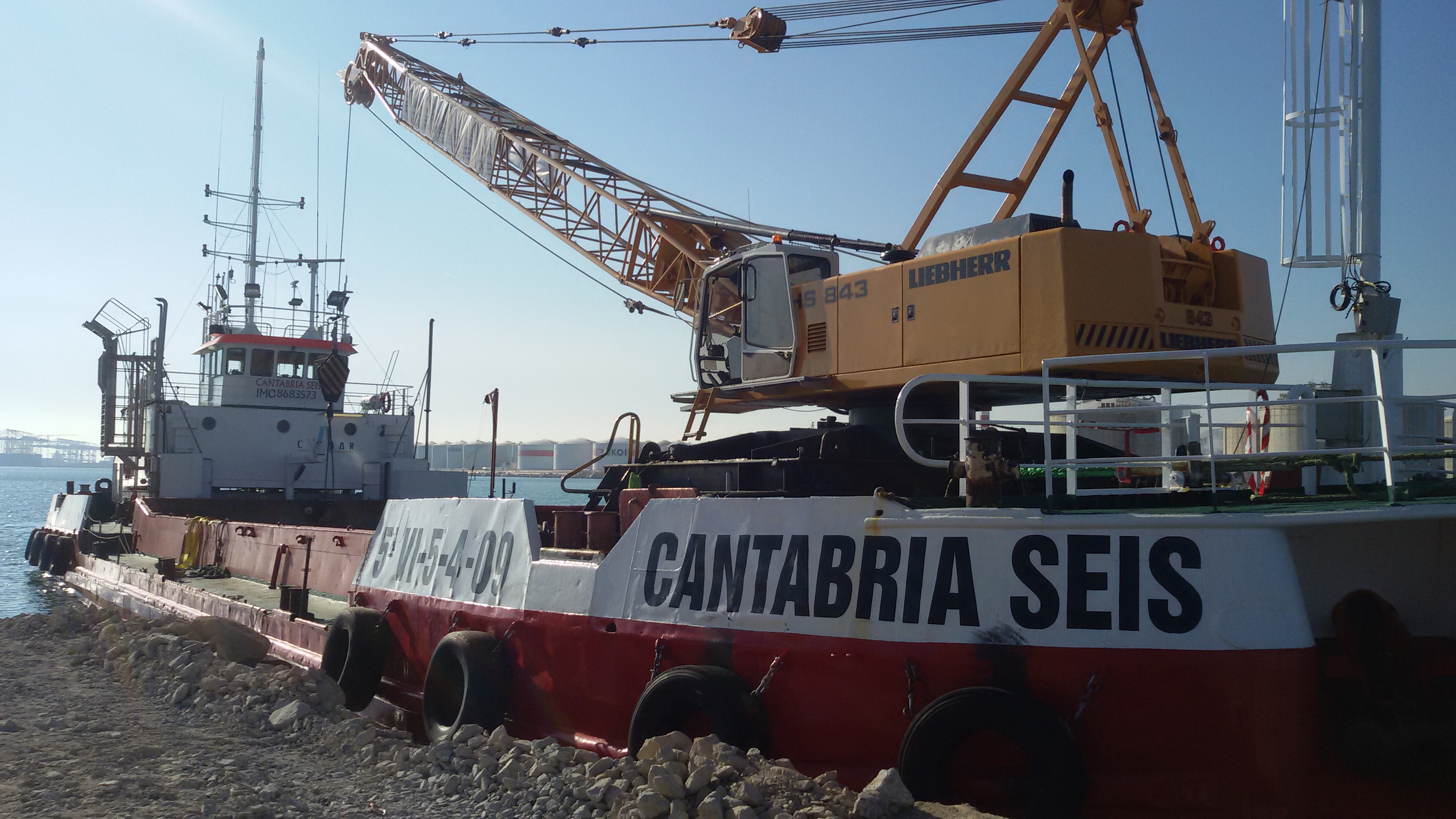

| SPLIT HOPPER DREDGER: CANTABRIA SEIS | ||
 Click on the image |
Registration number: | 5th – VI – 5 – 4 – 09 |
| IMO number | 9028354 | |
| Length: | 47,88 m | |
| Beam: | 12,00 m | |
| Loaded draft: | 2,50 m | |
| Empty draft: | 0,30 m | |
| Tonnage GT / NT: | 472 / 150 | |
| Pitcher capacity: | 600 m3 (pitcher with high gusset to prevent overflowing) |
|
| Propulsión: | Two Volvo Penta marine diesel engines, D16 model 640 hp each. | |
| Speed: | 9 knots |
|
| Dredging equipment: | 80 tn crane, with 2.4 m3 eco shovel and 3 m3 grapple Yield 80 m3/hour and 1,000 m3/day TOYO DP-20 pump, Voltage: 220/460/575, Rpm: 1160 Nominal flow (m3 / min) Yield 125 m3/hour and 1,500 m3/day |
|
| Positioning equipment: | Hopper (double GPS antenna with decimeter precision and WiFi) Crane (GNSS model GPS with centimeter precision and USDigital Robotic encoder height control system). Pitcher opening (pitcher opening sensor with coordinate registration). |
|
